Little Giant Auto. Sump Pump 46 GPM
3/10 HP 25'Cord # 6-CIA, 506125

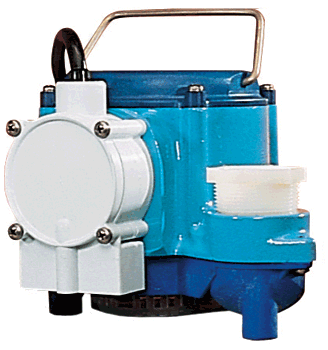

Little Giant Big John automatic sump pump with epoxy coated cast iron housing. Polypropylene base and polycarbon cover. Oil filled motor with thermal overload protection. Integral non-adjustable pressure actuated diaphragm level switch.
Specifications for Model 6-CIA Item 506125
Title
Big John Submersible Sump Pump-Series 6
Item Number
506125
Model Number
6-CIA-25
Horsepower
1/3
Flow
46 GPM @ 5'of Head
Automatic Operation
Turns on at 7 -10", off at 1"-4"
Minimum Sump Diameter
11"
Inlet
Screened
Outlet
1-1/2" FNPT.(includes bushing for 1-1/4"FNPT)
Cord Length
25'
Shut-off
18'
Voltage
115
Hertz
50/60
Amps
9
Watts
720
Weight
18.5 Lbs.
Height
6"
Width
8.5"
Length
9.5"
Pump Capacity Table 6-CIA (506125)In Gallons Per Minute
LGI-PMP-BJS6-Sump-Bulletin.pdf
