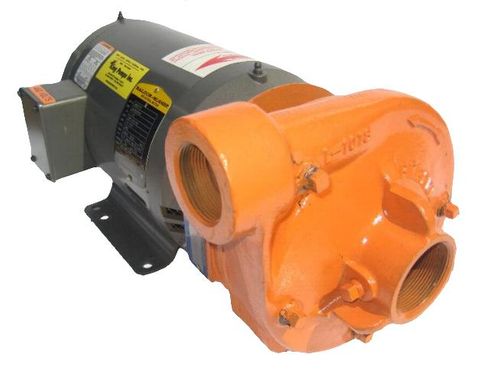

Berkeley Pumps 10 HP 3 PH 1800 RPM NPT #B3ZPMS-B54606

Add to cart to see price

Item#: BER-PMP-B3ZPMS (B54606)
Product Available Availability:Usually ships in 2-3 business days
Berkeley Pumps 10 HP 3 PH 1800 RPM  NPT # B3ZPMS-B54606 (M8)
Price too Low to Show
Ships Only Via Truck Line To A Commercial Address. Arrange to have your shipment sent to a commercial address who has a fork lift and a loading dock to avoid additional carrier imposed charges • Residential Shipping Requirements and Adders   • Residential Adder   • Lift Gate Adder   • Limited Access Adder

Specifications

Description: Berkeley Type B, cast iron, NPT, 4" X 3" X 9", 8-7/16" impeller pump, close coupled to 10 HP, 208-230/460 volts 3 Phase 1800 RPM, frame 215JM, ODP Motor. Construction: Casing and bracket are close grain cast iron; enclosed 8-7/16" cast iron impeller; 302 stainless steel motor shaft; single mechanical seal with carbon faces with Buna elastomers and 304 stainless steel metal parts. Connections: 4" X 3" female NPT suction and discharge Motor: 10 HP, 1800 RPM, Open drip proof, three phase, 208-230/460 volts, 60 Hz, 25.0/12.5 full load amps; ball bearings front and back; clockwise rotation, when facing back of motor. Maximum working temperature: 180 degrees Fahrenheit Maximum working pressure: 250 PSI Maximum Dimension:26" Long, 16" wide, 16" High Weight: 240 lbs


• Sprinkler Pumps Technical Data

• Sprinkler Pump Accessories
Pump Capacity - Berkeley B3ZPMS-B54606
At 0 Suction Lift, 1800 RPM
HP Imp. Capacity At Total Dynamic Head In Feet Shut
Off
20' 25' 30' 35' 40' 45' 50' 55' 60' 65' 70' 75' 80' 85' 90'
Gallons Per Minute (GPM)
10 8-7/16" - - - - - 690 620 590 520 420 400 300 - - - 78'
