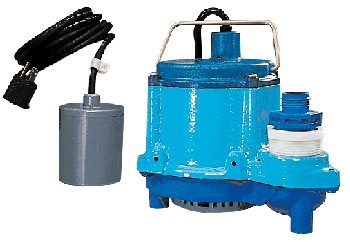

Little Giant Big JohnŽ manual or automatic sump pump with epoxy coated cast iron housing. Polypropylene base and polycarbon cover. Oil filled motor with thermal overload protection. Separate adjustable mechanically activated, wide angle, pump level switch with 115 volts, 10 foot, "piggy back" cord plug.
Specifications
Inlet: Screened bottom may be removed for easy cleaning,
Outlet: 1-1/2" MNPT (includes 1-1/4 FMNT bushing)
Electrical: 115 volts, 1 phase, 60 Hz, 3/10 HP, 9 amps, 720 Watts, 10' power cord
Level switch: Adjustable mechanically activated, wide angle pump level switch with 10 foot, 115 volts "piggy back" cord plug. Turns on at 7 -10", off at 1"-4"
Minimum sump diameter: 12"
Dimensions: 6" high, 9.5" long, 8.5" wide.
Weight: 18 lbs
| Pump Capacity Table 6-CIA-RFS (506171) |
| Model |
HP |
Head In Feet |
Shut-off |
| 5' |
10' |
15' |
| Gallons Per Minutes (GPM) |
| 6-CIA-RFS (506171) |
3/10 |
45 |
29 |
12.5 |
18' |
|
