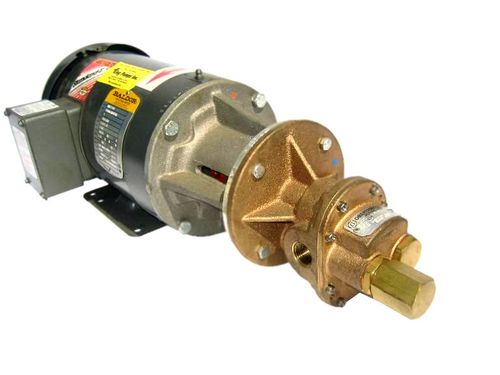

Click to enlargeOberdorfer Bronze Gear Pump 1/2" 6.6 GPM 1 HP, 3 Ø # N994RJN98 (D)

Oberdorfer Bronze Gear Pump 1/2" 6.6 GPM 1 HP, 3 Ø # N994RJN98. Oberdorfer close coupled oil and diesel fuel transfer all bronze positive displacement 1/2" 6.6 GPM rotary helical gear pump with carbon bearings and relief valve close coupled to 1 HP 230/460/3/60 1140 RPM motor model # N994RJN98-K



Specifications

  • Construction:
    • Bronze housing and gears
    • Steel shaft
    • Buna N lip seal
    • Carbon bearings.
  • Pipe size: 1/2" FIP suction and discharge
  • Suction lift: Up to 20 feet
  • Electrical:
    • HP: 1
    • RPM: 1140
    • Volts: 115
    • Phase: 1
    • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Factory relief valve setting: 50 PSI (field adjustable)
  • Noise: Metal to metal gear noise evident.

    Pump Capacity Table
    Model HP Discharge Pressure (PSI)
    20 60 80 100
    Gallons Per Minute (GPM)
    N994RJN98-K 1 6.6 6.1 5.9 5.6




    Availability: Usually ships the next business day.

    Oberdorfer Bronze Gear Pump 1/2" 6.6 GPM 1 HP, 3 Ø # N994RJN98
    OBE-PMP-N994RJ N98-KList: $1,563.00Only $1,025.00
