High Pressure Pump

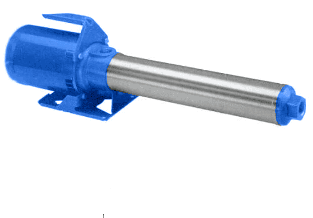

Goulds WaterGun Multi-stage Booster Pump # 7GBC07WG
pad

Click to enlargepadGoulds Watergun Multi-stage Booster Pump # 7GBC07WG (B)

The Goulds WaterGun provides fast, efficient cleaning for homes, farms, boats, campers, kennels and marinas. Includes pump & motor, carry handle, 3/4" hose adapters and 4 feet suction hose.



Specifications

  • Construction: Cast iron motor adapter and discharge head. 304 Stainless steel shaft coupling, bowl and hex shaft. Ceramic/Buna mechanical seal. Engineered composite impellers and diffusers.
  • Boosting pressure: With a 2 GPM nozzle it will add 172 PSI to the incoming city pressure. With a 3 GPM nozzle it will add 167 PSI to the incoming city pressure.
  • Suction & Discharge: 1" FNPT (3/4" male hose thread X 1" male NPT adapters are included.
  • Stages: 13
  • Maximum suction pressure: 75 PSI
  • Maximum liquid temperature: 160 degrees Fahrenheit
  • Maximum lift with foot valve: 10 feet
  • Mounting: Horizontal or vertical
  • Electrical: Continuous duty 56J motor capacitor motor with ball bearings, overload protection and automatic reset. 115 volt only, 1 phase, 3450 RPM, 60 Hz, 3/4 HP, 10 ft. power cord with G.F.I molded plug.
  • Dimensions: 8.75" high, 30" long, 6.5" wide. Wt: 46 lbs.


Pump Capacity Table
7GBC07WG Boosted Discharge Pressure In Feet (PSI)
200'
(86)
240'
(103)
270'
(116)
300'
(129)
330'
(142)
350'
(150)
370'
(159)
390'
(168)
400'
(172)
Gallons Per Minute (GPM)
10 9 8 7 6 5 4 3 2


Availability: Usually ships in 3-4 business days.
