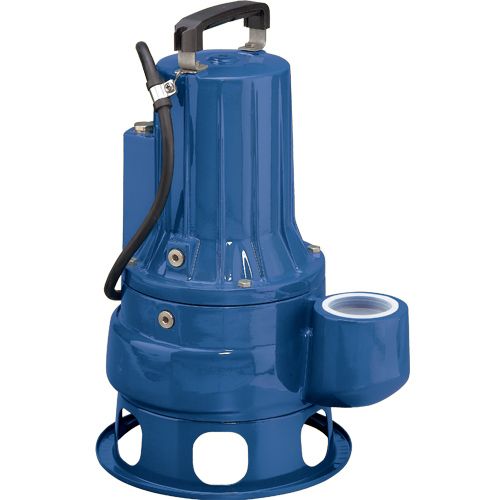

Pedrollo Manual Vortex 3" Sewage Pump 1-1/2 HP 3 PH # VXC15C36A (C)

Pedrollo Manual Vortex 3" Sewage Pump 1-1/2 HP 3 PH # VXC15C36A (C)
Item# PDP-PMP-VXC15-C36A
List: $1,664.00
Value Priced $1,223.06
Availability: ships in 2-3 business days

Pedrollo Manual Vortex 3" Sewage Pump 250 GPM 1-1/2 HP 3 PH # VXC15C16A, 4 amps, 230 volts, 3 phase, 60 Hz with 30 ft. cord, continuous duty, oil-less, motor with capacitor and overload protection. Vortex impeller pumps up to 3" solids. Dimensions: 20.8" high, 15.3" wide. Weight: 85.9 lbs.



Applications: For pumping sewage, wastewater, sludge, storm water and for general dewatering applications. Construction: Cast iron body, motor casing and impeller, stainless steel 304 base and shaft. Seal: Double silicon carbide mechanical seal, with oil barrier chamber (FDA approved oil) plus an inner lip seal to protect the seal in the event of dry running. Impeller type: Vortex Bearings: Upper and lower ball bearings Outlet: 3" female pipe connector Submersion Depth: Up to 30 feet Minimum Immersion: 16" from the base Minimum Basin Diameter: 32" Solids: 3" Liquid Temperature: Up to 104 degrees Fahrenheit Motor: Continuous duty, oil-less, class F insulation with capacitor and built-in overload. Electrical: 230 volts, 3 phase, 60 Hz, 1-1/2 HP, 4 amps, with 30 ft. cord less plug. Dimensions: 20.8" high, 15.3" wide. Weight: 85.9 lbs. Note: With a vortex impeller, flow through pump is produced not by the actual impeller, but rather by a rotating vortex created by the impeller. Because the pumping action is created by the vortex, particles in the liquid do not come in contact with the impeller itself, thus minimizing wear and clogging.



Capacity Table # VXC15C36A In Gallons Per Minute
Model HP PH Volts Amps Cord Size Total Dynamic Head (TDH) Shut-off
(feet)
5' 10' 15' 20' 25' 30'
Gallons Per Minute (GPM)
VXC15C36A 1-1/2 3 230 4 30' 3" 250 210 155 102 - - 27'

PDP-PMP-VXC3-Sewage-Sub-Bulletin.pdf
PDP-PRT-VXC3-Sewage-Sub-Parts.pdf
