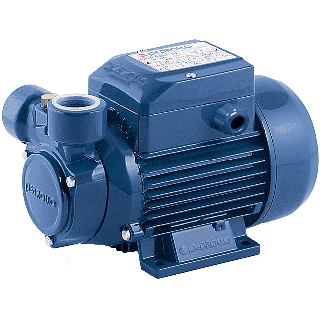

Pedrollo Peripheral Turbine Pump 1/2 HP 230 V 1 Phase 60Hz 8 GPM # PQm60-230

The Pedrollo PQm60-230 pump is recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive to the materials from which the pump is made. They are suitable for domestic use and as boosters for irrigating gardens.

Specifications

Installation: Must be installed in enclosed places, or at least protected against inclement weather. Suction lift: 20 feet Not self priming. Must install check or foot valve in suction line as required. Liquid temperature: Up to 194 F Ambient Temperature: Up to 104 F Construction Cast iron pump casing with 1" threaded ports. Aluminum motor bracket with brass insert; reduces starting difficulties due to seizure of the impeller after long periods of inactivity. Brass radial peripheral vanes impeller. Stainless steel motor shaft. Ceramic, graphite and NBR mechanical seal. Connections: 1" female threaded ports Motor: The pump is close-coupled to a PEDROLLO electric motor, quiet running, totally enclosed fan cooled (TEFC), suitable for continuous duty. Electrical: 1/2 HP, 3450 RPM, 2.6 Amps, 230 Volt, 1 Phase, 60 Hz, 1.15 Service Factor, class F insulation, with capacitor and thermal overload protector. Dimensions: 12 x 8 x 8" Weight: 15 lbs. Power Cord: None Duty Cycle: Continuous
