Click to enlargepadBurks End Suction Centrifugal Pump 55 GPM 1.5 HP # 315GA5-1-1/4 (B)

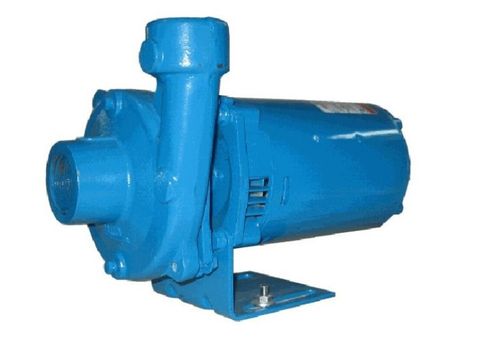

Burks end suction, three phase, close-coupled, bronze fitted, centrifugal pump with mechanical seal. They are ideal for booster service, recirculation, general water supply, and washer lines.


Specifications
  • Construction:
    • Casing and bracket are close grain cast iron.
    • Enclosed 4-9/16" bronze impeller
    • 302 stainless steel motor shaft
    • single mechanical seal
      • carbon faces
      • Buna elastomers
      • 304 stainless steel metal parts.
  • Connections: 1-1/2" X 1-1/4" female NPT suction and discharge
  • Motor:
    • 1-1/2 HP, 3450 RPM, Open drip proof, three phase,
    • 208/230/460 volts, 60 Hz
    • Ball bearings front and back
    • Built-in overload protection.
    • Clockwise rotation, when facing back of motor.
  • Maximum working pressure: 200 PSI
  • Maximum inlet pressure: 100 PSI
  • Maximum working temperature: 180 degrees Fahrenheit
  • Capacity:
    • 35 GPM @ 88 TDH, 60% Efficiency, 4 NPSH
    • 55 GPM @ 77 TDH, 70% Efficiency, 6 NPSH
    • 85 GPM @ 52 TDH, 60% Efficiency, 15 NPSH
    • 90 TDH Shut-off
  • Carton dimension: 14" high, 12" wide, 24" long.
  • Weight: 52 lbs


    BUR-PMP-315GA5-125padList: $822.00padDiscounted Price $666.00pad
