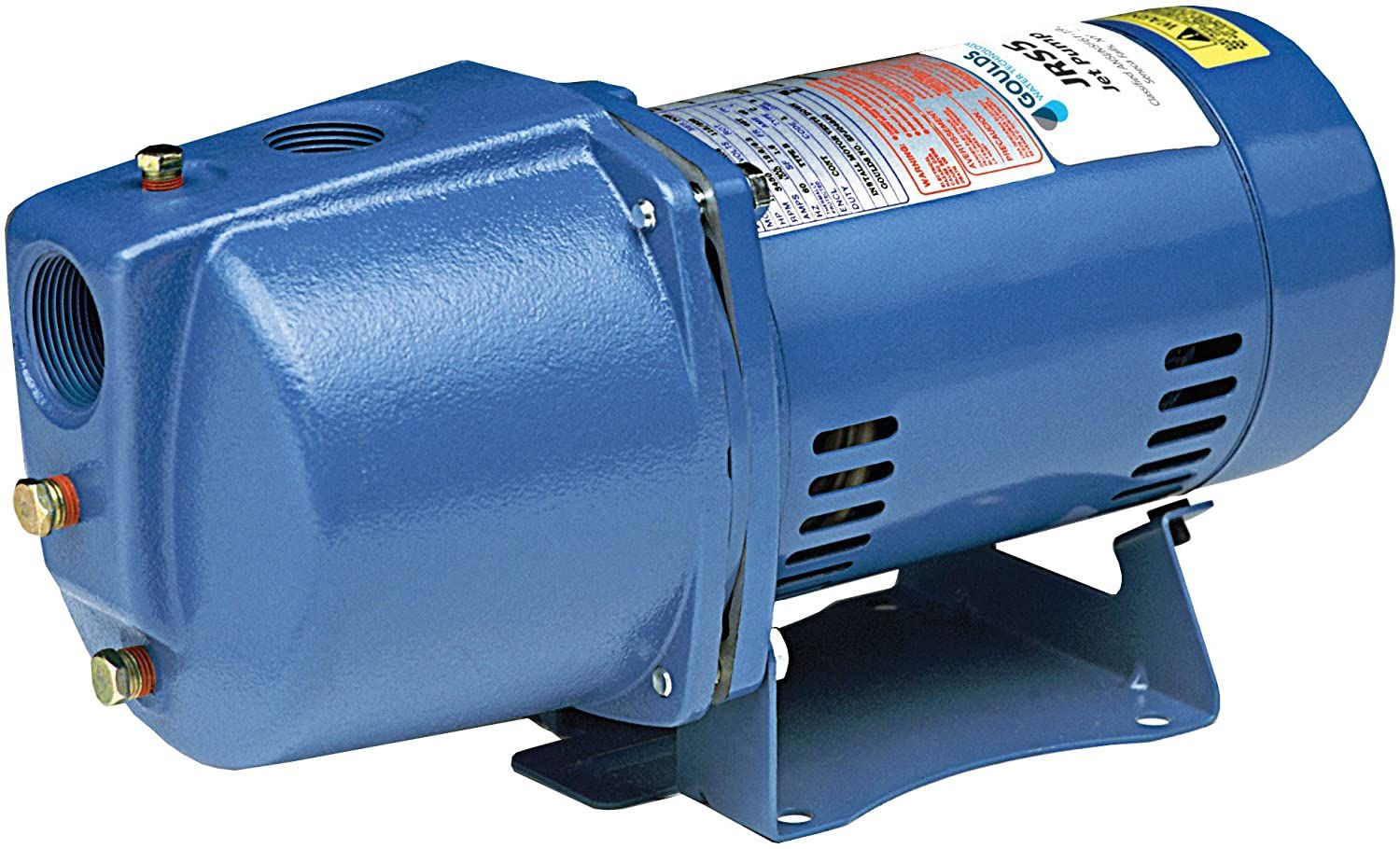

Goulds Water Technology Jet Shallow Well Pump 3/4 HP 1 Phase # JRS7

Goulds Water Technology Jet Shallow Well Pump 3/4 HP 1 Phase # JRS7 (C) <br>
Item# GOU-PMP-JRS7
List: $462.80
Value Priced $337.28
Availability: ships the next business day

Specifications

Description: Goulds Water Technology Jet Shallow Well Pump Applications: Specifically designed for use on shallow well applications like homes, cottages, and booster service. Compact: design has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter. 3/4 HP 1 Phase # JRS7, Pump Body: Cast iron casing. Pump has Stainless Steel wear ring for longer life and resistance to wear Motor: 3/4 HP, Nema service factors Volts: 115/230 Phase: Single Hertz: 60, capacitor start RPM: 3500 Shaft: Stainless Steel Shaft Seal: Standard Mech. Seal is Buna/Carbon/Ceramic Impeller Type: F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant.Ports:1-1/4" NPT suction, 1" NPT discharge Rotation: clockwise when viewed from motor end Maximum Temperature: 140 degrees Fahrenheit Width: 9.15" Height: 8" Weight: 42 lbs. Certifications: CSA certified.


* Jet Pumps Technical Data

* Jet Pumps Accessories


Capacity Rating Chart In Gallons Per Minute
Model HP Discharge Pressure
PSI
Suction Lift In Feet
5' 10' 15' 20' 25'
JRS7 3/4 30 22.5 20.3 17.8 14.8 11.5
40 17.9 16.3 15.3 13.6 10.8
50 12.4 11.5 9.0 7.3 5.2
Shut-off 69 PSI 65 PSI 63 PSI 61 PSI 58 PSI

GOU-PMP-JRS-Jet-Bulletin.pdf
GOU-PMP-JRS-Jet-Manual.pdf
GOU-PRT-JRS-Jet-Repair-Parts-List.pdf

Hydro-pneumatic Goulds Water Technology Jet System 2 to 2-1/2 Bathrooms, 3/4 HP 115/230  Volts 30-50 PSI

System components specifically pre-selected to meet a typical seven minute peak demand based on a 2 to 2-1/2 bathroom home when pumping from 15' suction lift with a 30-50 PSI working pressure. Goulds Water Technology 3/4 HP, 115/230 Volts. CLICK FOR SYSTEM COMPONENTS
