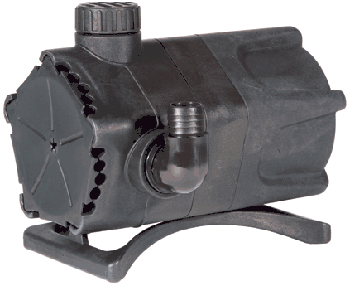

Little Giant Submersible Pump
1900 GPH # WGP-65-PW (566409)
Add to cart to see price
Description
Little Giant PondWorks premium pond, fountain, waterfall and stream submersible pump 1900 GPH # WGP-65 (566409). Unique dual discharge design allows for operation of two water features simultaneously. Replaces model 566065.
Specifications
Applications: Ideal for circulating pond water through a filter, in conjunction with a fountain head, waterfall or stream Designed to operate continuously with maximum energy efficiency. 0perates submersed. For ponds up to 1200 gallons. Construction: Corrosion resistant materials designed for non-potable submersible use. Polypropylene housing, cover and volute. Noryl impeller and Nitrile shaft seal Maximum pond size: 1200 Gallons Inlet:Easy to clean inlet screen. Outlet: 1-1/4" FNPT outlet (Includes 1-1/4" MNPT x 1" barbed elbow for 1" I.D. tubing. Electrical: Oil-less motor 115 volts, 1 phase, 60 Hz, 1/8 HP, 230 watts, 2.0 amps, with 16 ft. power cord Dimensions: 9.6" high, 6-3/8" long, 8-1/16" wide. Weight: 10.5 lbs. Note: The WGP-65-PW series units are supplied with a 1" barbed elbow that is screwed into the discharge of the pump. Flow is reduced approximately 20% when these elbows are used.
Capacity Table WGP-65-PW (566409) In Gallons Per Hour | |||||||
---|---|---|---|---|---|---|---|
Model | HP | Head In Feet | Shut-off | ||||
1' | 5' | 10' | 15' | 20' | |||
Gallons Per Hour (GPH) | |||||||
WGP-65-PW (566409) | 1/8 | 1900 | 1250 | 785 | 325 | 0 | 20' |
