Pearl Submersible Pump 5 GPM 1-1/2 HP 230 Volts # 4PWP05G15-C163-F (CC)
Item#:
PEA-PMP-4PWP05G15-C163-F
Availability:Usually ships the next business day
Reg. $2,059.00
Sale: $1,426.00
Shipping ChargesDescription
Description

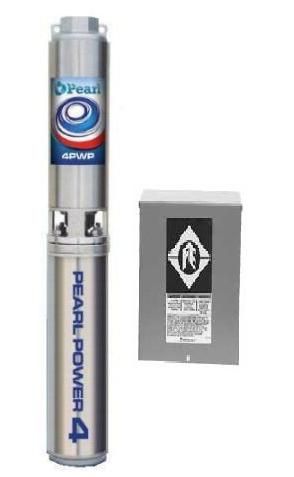

Pearl Pump, 304 stainless steel with polycarbonate diffusers and floating type impellers in Noryl, 5 GPM, 1-1/2 HP, 230 Volts, 1 phase, 60 HZ, 4" submersible pumps # 4PWP05G15-C163-F, 3-wire, with Franklin Electric motor & control box for Multipurpose applications in the residential, agriculture and industrial markets. Perfect for pressure boosting application, irrigation and water transfer.
| IMPORTANT INFORMATION FOR INSTALLERS OF THIS EQUIPMENT! The equipment is intended for installation by qualified, licensed contractors. This is NOT a do-it yourself product. |
|---|
Specifications
- Minimum Well diameter: 4"
- Construction: 304 stainless steel with polycarbonate diffusers and floating type impellers in Noryl
- Inlet: Screened inlet
- Outlet: 1-1/4" FNPT.
- Stages: 26
- Electrical: 230 volts, 1 phase, 60 Hz, 1-1/2 HP.
- Motor: Franklin Electric water cooled submersible motor # 2243009203S
- Control Box: Franklin Electric single phase 230 volt, Nema 1 Box # 2823008110
- Weight: 48 lbs
- Required control box (included in price): Single phase three wire submersible motors require the use of an
above ground control box. Operation of motors without control boxes or incorrect boxes will result in failure of motor.
• Submersible Well Pumps Technical Data
• Submersible Well Pump Accessories
| Pump Capacity Table – Pearl 4PWP05G15-C163-F | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge Pressure PSI | Capacity At Depth To Water In Feet | |||||||||||||
| 100' | 150' | 200' | 250' | 300' | 350' | 400' | 450' | 500' | 550' | 600' | 650' | 700' | 750' | |
| Gallons Per Minute (GPM) | ||||||||||||||
| 0 PSI | - | - | - | 7.7 | 7.3 | 6.7 | 6.3 | 5.7 | 5.3 | 4.7 | 4.1 | 3.5 | 2.7 | 2 |
| 20-40 PSI | - | - | - | 7.3 | 6.8 | 6.4 | 5.8 | 5.4 | 4.8 | 4.2 | 3.6 | 2.8 | 2.2 | - |
| 30-50 PSI | - | - | 7.6 | 7.2 | 6.6 | 6.1 | 5.5 | 5 | 4.4 | 3.8 | 3.3 | 2.5 | - | - |
| 40-60 PSI | 7.7 | 7.4 | 6.8 | 6.4 | 5.8 | 5.3 | 4.8 | 4.2 | 3.5 | 3 | 2 | - | - | - |
