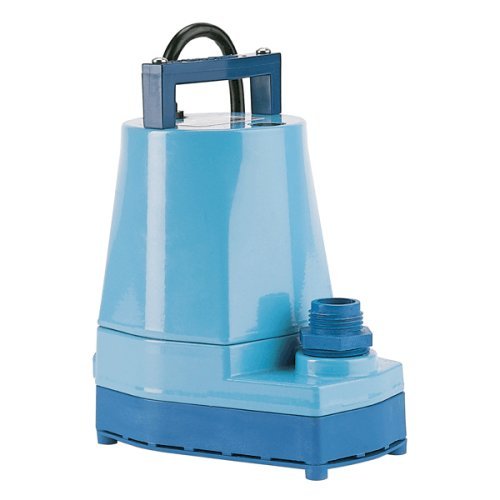

Little Giant Pumps Water Wizard Utility Sump Pump 20 GPM 1/6 HP # 5-MSP (505025)

Little Giant  Pumps Utility Sump Pump 20 GPM 1/6 HP # 5-MSP (505025) (D)<br>
Item# LGI-PMP-5MSP (505025)
List: $192.48
Value Priced $136.28
Availability: ships the same business day

Little Giant Pumps Water Wizard Utility Sump Pump 20 GPM 1/6 HP # 5-MSP (505025) with epoxy coated aluminum housing and 25 feet cord. Contains non-toxic mineral oil, which provides continuous lubrication for maximum motor life. Thermally protected motor. 0perates submersed only. Removes water down to 1/8" when run manually. For automatic low water level operation order separately RS-5-LL switch. On 2"-3", Off: 1/2"-1-1/2".

Specifications

Construction: Epoxy coated aluminum housing. Contains non-toxic mineral oil, which provides continuous lubrication for maximum motor life. Inlet: Has removable screen for easy cleaning. Outlet: 1" FNPT (Includes 1" MNPT x 3/4 GHT garden-hose adapter # GH-1) Pumping Level: Removes water down to 1/8" when operated manually. Electrical: 115 volts, 1 phase, 60 Hz, 1/6 HP, 380 watts, 5.0 amps, 25 ft. power cord. Thermally protected . Dimensions: 8-1/2" high, 6" long, 4-3/8" wide. Weight: 9.25 lbs.



Pump Capacity Table 5-MSP (505025)
Model HP Head In Feet Shut-off
1' 5' 10'
Gallons Per Minutes (GPM)
5-MSP (505025) 1/6 20 18 17 26.3'

LGI-PMP-5MSP-Utility-Bulletin.pdf
LGI-PMP-5MSP-Utility-Manual.pdf

Diaphragm Low Level Switch With 25' Cord  RS-5-LL (599019)  (C)<br>

Little giant converts any manual pump, up through 1/3 HP, to automatic. Includes two Phillips drive screws and two cable ties. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump. Pressure to the diaphragm is caused by rising water around the switch housing. Mounting: Replaces the complete switch assembly on the model 5-APCP Pool Cover Pumps. It Can also be attached directly to a model 5-MSP (505025) Utility pump using the two slot drive screws provided. On 2"-3", Off: .50"-1.5".

List: $108.14
Value Priced $78.83
Availability: ships the next business day
LGI-CTL-RS-5-LL (599019)
