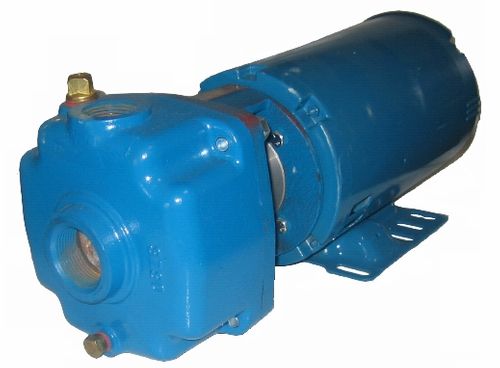

Burks Boiler Feed Turbine Pump 21 GPM 3 HP # 330CS7M
Item#:
BUR-PMP-330CS7M
Availability:Usually ships the next business day
Sale: $2,994.27
Shipping ChargesDescription
Burks close coupled three phase boiler feed regenerative turbine pump. Impeller can be readjusted externally without disturbing piping, dismantling pump or replacing parts.
Specifications
Construction: Cast Iron frame and casing, bronze raceway, bronze impeller with monel blades, 316 stainless steel shaft, Single mechanical seal with carbon faces, Buna elastomers and 300 series stainless steel parts. Connections: 1-1/4" X 1" female NPT suction and discharge Motor: 3 HP, 3450 RPM, Open drip proof, three phase, 208/230/460 volts, 60/50 Hz, with ball bearings front and back and built-in overload protection. Counterclockwise rotation, rated with jet pump service factor. Maximum working pressure: 250 PSI Maximum inlet pressure: 100 PSI Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 14" high, 15" wide, 24" long Weight: 72 lbs
| Pump Capacity Table 330CS7M In Gallons Per Minute | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | Head In PSI | |||||||||||||
| 8.6 | 17.2 | 26 | 43.3 | 54.1 | 64.9 | 75.8 | 86.6 | 97.4 | 108.3 | 119.1 | 130 | 140.1 | 151.6 | ||
| Gallons Per Minute (GPM) | |||||||||||||||
| 330CS7M | 3 | 20.5 | 19.6 | 19.5 | 17.3 | 16.5 | 16.0 | 15.3 | 14.7 | 14.2 | 13.7 | 13.3 | 12.8 | 12.5 | 12.0 |
