Myers Submersible Well Pump with Control Box 20 GPM 1 HP 230V # 3NFL102-20

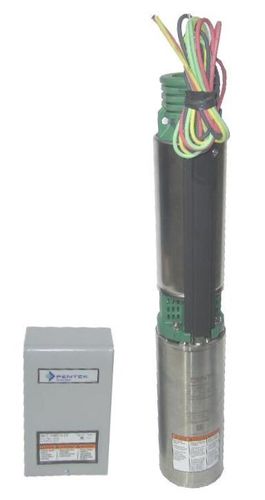

Myers Submersible Well Pump 20 GPM 1 HP 230V with Control Box # 3NFL102-20 (C)
Item# FEM-PMP-3NFL102-20
List: $1,497.00
Value Priced $1,197.60
Availability: ships the next business day

Myers Submersible Well Pump 20 GPM 1 HP 230V with Control Box # 3NFL102-20 (C)

Description

Myers Rustler 1 HP, 230 volts 1 phase, 60 HZ, 4" deep well submersible pumps. Centrifugal multi-stage, 3-wire, with electric motor & control box.

Specifications

Construction: Stainless steel pump shell, shaft and coupling. Teflon blended polyester staging Check Valve: Built-in poppet type Inlet: Screened inlet Outlet: 1-1/4" FNPT. Stages: 8 Electrical: 230 volts, 1 phase, 60 Hz, 1 HP, 9.8 amps. water cooled electric motor with thermal overload and lightning protection. Lead wire length (Pigtail): 30" Carton Dimensions: 5" high, 35 long, 5" wide. Weight: 33 lbs Suggested accessories: 12/4 submersible wire (order separately) Certifications: UL Classified ANSI/NSF61. UL and CSA listed. Required control box (included in price): Single phase three wire submersible motors require the use of an above ground control box. Operation of motors without control boxes or incorrect boxes will result in failure of motor.


• Submersible Well Pumps Technical Data

• Submersible Well Pump Accessories


IMPORTANT INFORMATION FOR INSTALLERS OF THIS EQUIPMENT!
The equipment is intended for installation by qualified, licensed contractors. This is NOT a do-it yourself product.


Pump Capacity Table
Discharge Pressure PSI Capacity At Depth To Water In Feet
20' 40' 60' 80' 100' 120' 140' 160' 180' 200' 220'
Gallons Per Minute (GPM)
0 Tank PSI - - - - - 24.0 21.0 20.0 18.0 16.0 14.0
20-40 Tank PSI - 24.5 23.0 22.0 20.5 18.0 15.5 - - - -
30-50 Tank PSI 24.0 23.0 21.5 20.0 17.5 14.5 - - - - -
40-60 Tank PSI 23.0 21.5 20.0 17.5 14.5 - - - - - -

FEM-PMP-Rustler-Submersible-Bulletin.pdf
FEM-PMP-Rustler-Submersible-Manual.pdf
FEM-PRT-Submersible-Parts-Lists.pdf
