Burks Boiler Feed Turbine Pump 8 GPM Burks 3/4 HP # 7CT7M

Burks Pumps Boiler Feed Turbine Pump 8 GPM Burks 3/4 HP # 7CT7M  (D)  <br>
Item# BUR-PMP-7CT7M
List: $1,552.24
Value Priced $1,019.08
Availability: ships the next business day

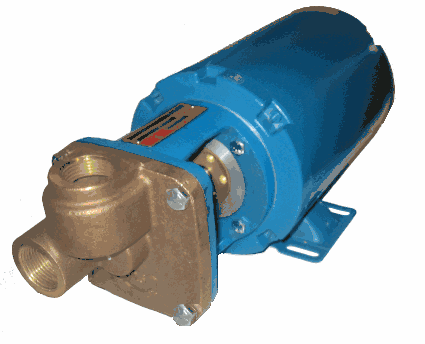

Burks close coupled single phase boiler feed regenerative turbine pump. Impeller can be readjusted externally without disturbing piping, dismantling pump or replacing parts.



Specifications


Construction: Cast Iron frame and casing, bronze raceway, bronze impeller with monel blades, 316 stainless steel shaft, Single mechanical seal with carbon faces, Buna elastomers and 300 series stainless steel parts. Connections: 1" female NPT suction and discharge Motor: 3/4 HP, 3450 RPM, Open drip proof, single phase, 115/230 volts, 60 Hz, with ball bearings front and back and built-in overload protection. Counterclockwise rotation, rated with jet pump service factor. Maximum working pressure: 250 PSI Maximum inlet pressure: 100 PSI Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 12" high, 9" wide, 19"long. Weight: 38 lbs

Pump Capacity Table 7CT7M In Gallons Per Minute
Model HP Head In PSI
8.6 17.2 26 43.3 54.1 64.9 75.8 86.6 97.4 119.1 130 140.1 151.6
Gallons Per Minute (GPM)
7CT7M 3/4 8.3 7.8 7.4 6.6 6.5 6.2 6.0 5.8 5.5 5.3 5.2 5.1 5.0

BUR-PMP-CT-Turbine-Specifications.pdf
BUR-PMP-CT-Turbine-Composite-Curve.pdf
BUR-PMP-CT-Turbine-Curves.pdf
BUR-PMP-CT-Turbine-Dimensions.pdf
BUR-PMP-Turbine-Manual.pdf
BUR-PMP-Turbine-Impeller-Adjustment.pdf

Burks Pumps Repair Kit For ET7M / CT7M Pumps # 20158-7 (D)
Burks Pumps Repair Kit For ET7M / CT7M Pumps # 20158-7 (D)

Burks CT kits include: Impeller, raceway, shaft seal, "o" ring, impeller lock washer and instructions

List: $673.00
Value Priced $586.21
Availability: ships in 5-7 business days
BUR-PRT-20158-7
