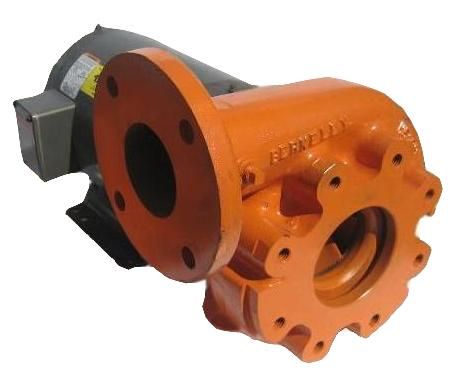

Descriptin:Berkeley Type B, cast iron, Flanged, 4" X 3" X 9", 8-7/16" impeller pumpFlanged, close coupled to 10 HP, 230 volts 1 Phase 1800 RPM, frame 215JM, ODP Motor. Construction: Casing and bracket are close grain cast iron; Enclosed 7-7/8" cast iron impeller; 302 stainless steel motor shaft; Single mechanical seal with carbon faces and Buna elastomers; 304 stainless steel metal parts
Connections: 4" X 3" X 9", female Flanged suction and discharge
Motor: 10 HP, 1800 RPM, Open drip proof, single phase, 230 volts, 60 Hz 41.0 full load amps, Ball bearings front and back; Built-in overload protection; clockwise rotation, when facing back of motor
Maximum working temperature: 180 degrees Fahrenheit
Maximum Dimension: 26" Long, 16" wide, 16" High
Weight: 240 lbs
• Sprinkler Pumps Technical Data
• Sprinkler Pump Accessories
Pump Capacity - Berkeley B3ZPMS-B70178 At 0 Suction Lift, 1800 RPM |
HP |
Imp. |
Capacity At Total Dynamic Head In Feet |
Shut Off |
20' |
25' |
30' |
35' |
40' |
45' |
50' |
55' |
60' |
65' |
70' |
75' |
80' |
85' |
90' |
Gallons Per Minute (GPM) |
10 |
8-7/16" |
- |
- |
- |
- |
- |
690 |
620 |
590 |
520 |
420 |
400 |
300 |
- |
- |
- |
78' |
