Franklin Electric Centrifugal Pumps, 1 HP 3 Ph. 208-230/460V. # 15FMH1S4-T (96061512)

Add to cart to see price

Item#: FRA-PMP-15FMH1S4-T (96061512)
Product Available Availability:Usually ships in 1-2 weeks

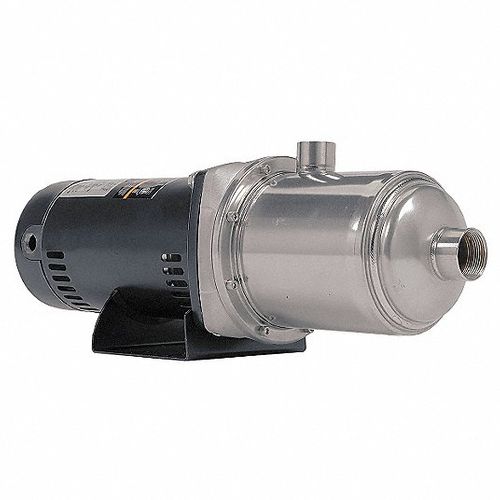

Franklin Electric Horizontal Multi-Stage Centrifugal Pump, 1 HP 3 Ph. 208-230/460 # 15FMH1S4-T (96061512)
Price too Low to Show

Franklin Electric Horizontal Multi-Stage Centrifugal Pump, 15 GPM, 1 HP 3 Ph. 208-230/460 # 15FMH1S4-T (96061512). Ideal for pressure boosting, turf irrigation, water transfer, residential lawn sprinkler systems, wash down applications and water features. The stainless steel construction offers high performance in a wide variety of applications.

Specifications

Pump type: Multi-Stage Booster Pump Suction Discharge: 1.25” x 1” Max. Pressure: 88 psi Number of Stages: 4 Casing: 304 stainless steel w/ NPT threaded suction and discharge connections. Impeller: 304 stainless steel. Mechanical Seal: The pump shaft seal shall have carbon rotating face and a ceramic stationary face with Viton elastomers. Pump Mounting Position: Horizontal Motor Enclosure: Open Dripproof Max. Liquid Temperature: 225 Degrees F Max. Case Pressure: 150 psi Suction Lift: 10 ft. Electric Motor: 1 HP, 3 Phase, 60 Hz, 3500 rpm, Amps 12.2/6.1. The drive motor shall be square flanged, thermally protected, dual voltage, 208-230/460 Volts. Weight: 29 lbs. Duty Cycle: Continuous

Performance Data
Model HP Total Head-Feet Shut Off
Head (PSI)
60' 70' 80' 90' 100' 110' 120' 130' 140' 150' 160' 170' 180' 190' 200'
Gallons Per Minute (GPM)
15FMH1S4-T 1 26 25 24 23 21 20 18 17 15 14 12 10 8 5 1 88'
