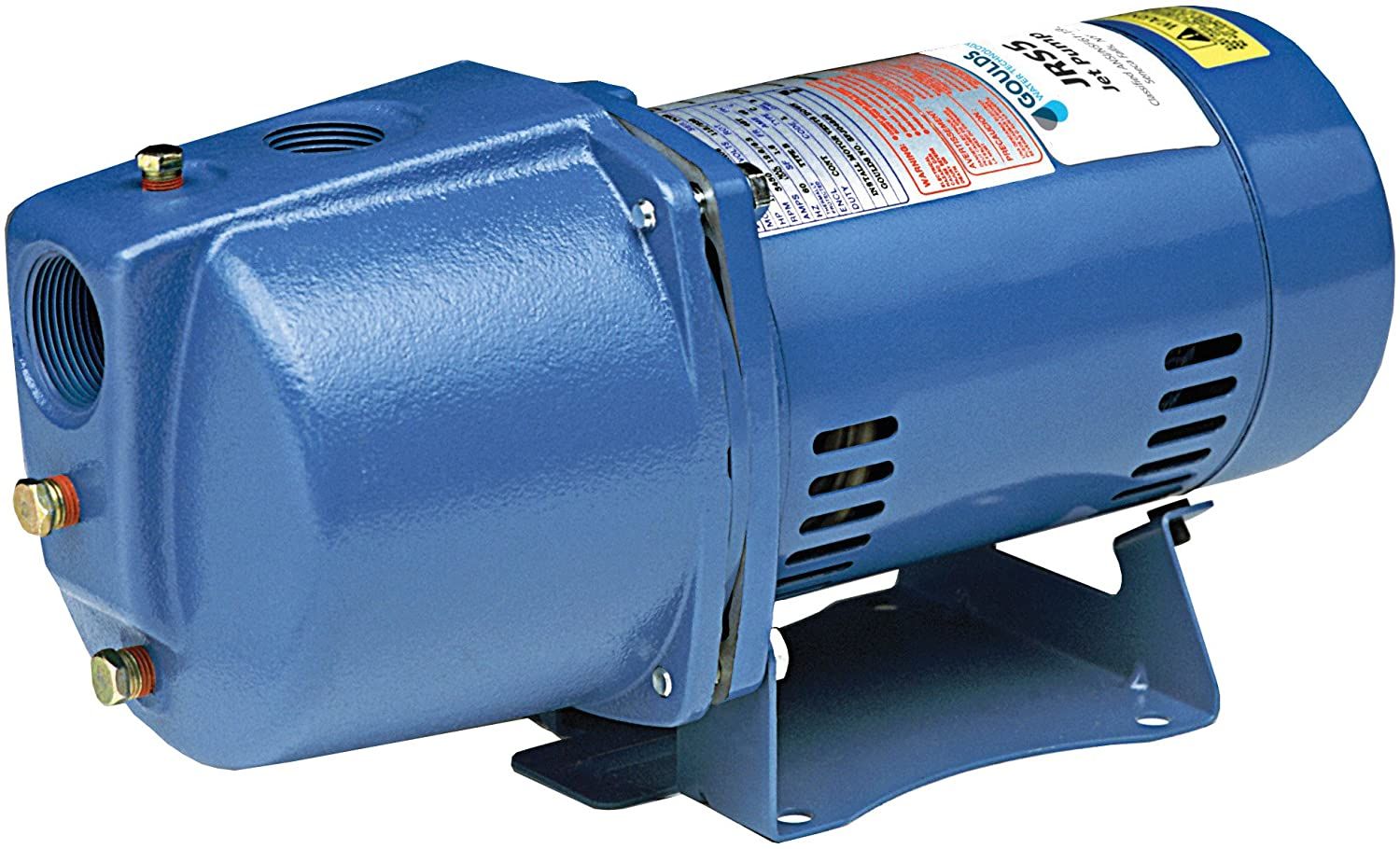

Goulds Water Technology Jet Shallow Well Pump
1 HP 1 Phase # JRS10
Add to cart to see price
Availability:Usually ships the next business day
Shipping ChargesDescription
Goulds Water Technology Jet Shallow Well Pump 1 HP 1 Phase # JRS10, Specifically designed for use on shallow well applications like homes, cottages, and booster service. Compact: design has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter.
Specifications
Pump Body: Cast iron casing. Pump has Stainless Steel wear ring for longer life and resistance to wear Motor: 1 HP, Nema service factors Volts: 115/230 Phase: Single Hertz: 60, capacitor start RPM:3500 Shaft: Stainless Steel Shaft Seal: Standard Mech. Seal is Buna/Carbon/Ceramic Impeller Type: F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Ports: 1-1/4" NPT suction, 1" NPT discharge Rotation: clockwise when viewed from motor end Maximum Temperature: 140 degrees Fahrenheit Width: 9.15" Height: 8" Weight: 47 lbs. Certifications: CSA certified.
* Jet Pumps Technical Data
* Jet Pumps Accessories
| Model | HP | Discharge Pressure PSI |
Suction Lift In Feet | ||||
|---|---|---|---|---|---|---|---|
| 5' | 10' | 15' | 20' | 25' | |||
| JRS10 | 1 | 30 | 27.0 | 24.5 | 21.2 | 17.6 | 13.4 |
| 40 | 22.4 | 20.5 | 19.2 | 16.8 | 13.0 | ||
| 50 | 15.7 | 14.8 | 12.6 | 11.1 | 8.7 | ||
| 60 | 9.6 | 7.5 | 5.1 | 3.3 | - | ||
| Shut-off | 72 PSI | 69 PSI | 66 PSI | 63 PSI | 61 PSI | ||
