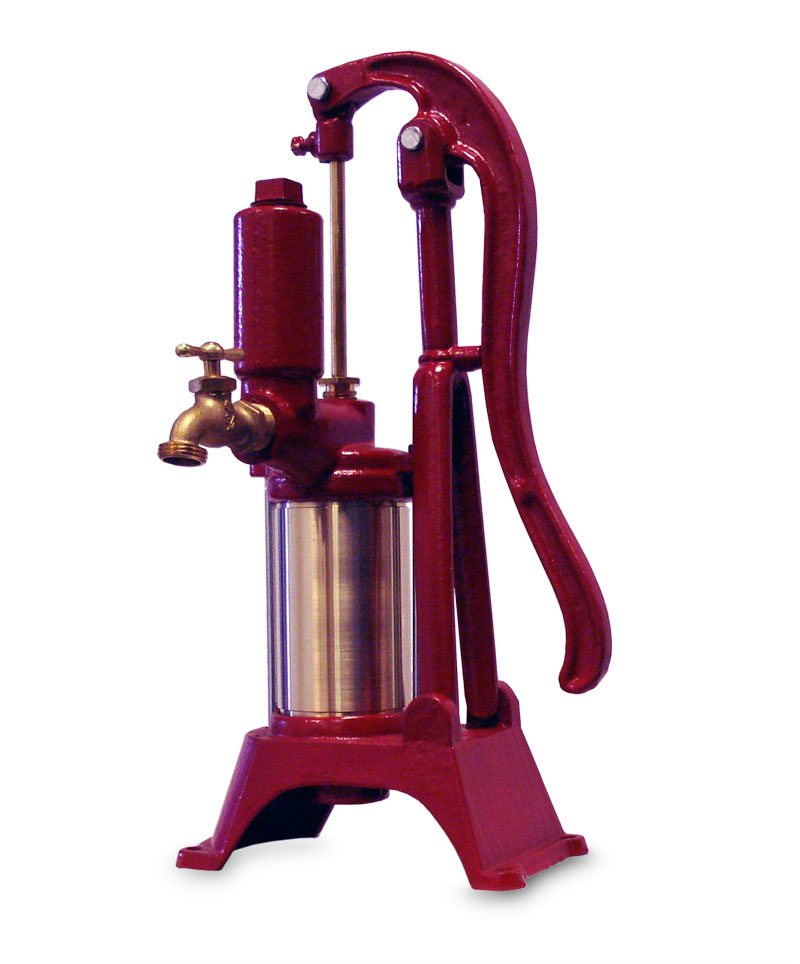

Heller Aller Hand Pressure Pitcher Pump
with Brass Cylinder and Bronze Bib # PHB
Heller Aller Double-Acting Hand Pitcher Pump with Brass Cylinder and Bronze Bib # PHB for cisterns and shallow wells up to 20 ft. Delivers approximately 1 GPM per 14 strokes. Tapped for 1-1/4" drop pipe. Easily installed. Neat, attractive pressure pitcher pump that can force water to a second floor or through a hose to another location. This is our best pitcher pump , made of the highest grade gray iron castings. The brass cylinder is machined smooth and polished to reduce wear on leathers. This double-acting pitcher pump requires more force than a single-acting unit.
Type: Double-acting pitcher pump Construction: Heavy duty cast iron base, air chamber and handle. Cast iron plunger cage, nut & discharge valve weight. Solid brass plunger, rod, packing nut and hose bib. Seamless brass cylinder. Zink plated bolt, nuts & washers. Leather plunger cup & flat flap valve. Finish: Corrosion resistant primer paint. Suction Lift: 20 feet, Capacity: Approximately 1 gallon per 14 strokes
Cylinder ID: 3".
Valve: 3-1/2" outside diameter (O.D.).
Cup: 3" O.D., 2" I.D.
Air Chamber: Built-n
Inlet: Tapped for 1-1/4" drop pipe.
Outlet: Solid brass bib with male hose thread
"Kant Freeze" when the handle is raised to its full height to drain cylinder
Spout To Base:
Weight: 22 lbs. Proudly Made in the USA by Amish Craftsmen.
Heller Aller leather parts kit # B17182021 for Heller Aller model PHB, Fig and 21P pitcher pumps. Includes item B-17 # LV275 leather valve, item B-18 # Cl300 leather cup, item B-20 # 708 leather gasket (used only with models PHB and 4 each item B-23 leather packing rings for the stuffing box (replaces B21 12" packing material used only with model PHB).
Value Priced $45.80
Questions & Answers
What is a single-acting pitcher pump?
In a single-acting pitcher pump the water is "lifted" and "bubbles" out of the discharge spout on the up stroke. The down stroke is used only to re-set the piston.
What is a double acting pitcher pump?
In a double-acting pitcher pump the water is "lifted" on the up stroke and is discharged under pressure on the down stroke. A double-acting pitcher pump requires more force than a single-acting unit.
