Little Giant submersible fountain pump 1150 GPH # PES-1000-PW (566722) for ponds up to 1150 gallons. Replaces # PES-1000-PW (56629) Ideal for powering fountain nozzles, pond ornaments, fountains, filters, waterfalls, strams amd circulating ponds up to 1200 gallons. Compact in design and made with corrosion-resistant plastic. Operates submersed only.

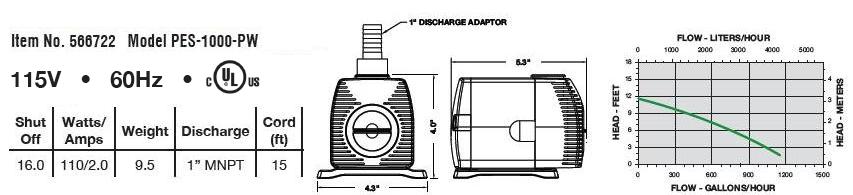

Specifications
Type: Magnetic Drive Pond Pump Installation: Operates submersed only
Construction: ABS housing, cover, volute and screen; POM impeller; Ceramic shaft
Capacity Rating: 1150 Maximum discharge head: 16 '
Flow Control: Built-in valve adjusts flow from 0 to 1150 GPH.
Inlet:Screened
Outlet: 1" barbed adapter
Tubing Size Required : 1" ID tubing
Motor: Magnetic drive design
Electrical: 120 volts, 1 phase, 60 Hz, 2.0 Amps, 110 watts,
Cord Lengh: 15 ft.power cord.
Dimensions: 5.3" high, 7.7" long, 5.0" wide.
Weight: 9.50 lbs.
Listings: cULus
| Capacity Table# PES-1000-PW In Gallons Per Hour |
| Model |
Head In Feet |
Shut-off |
| 1' |
3' |
5' |
10' |
| Gallons Per Hour (GPH) |
| PES-1000-PW (566722) |
1150 |
965 |
775 |
200 |
11.75' |
LGI-PMP-PES-1000-PW-Statuary-Bulletin.pdf
