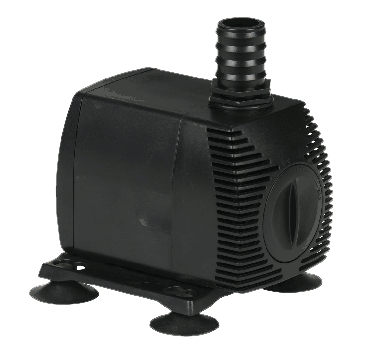

Little Giant statuary and fountain pump. Ideal for powering fountain nozzles, pond ornaments, fountains, filters, waterfalls, streams and circulating ponds up to 875 gallons. Compact in design and made with corrosion-resistant plastic. Operates submersed only.
Specifications
Installation: Operates submersed only
Construction: ABS housing, cover, volute and screen; POM impeller; Ceramic motor shaft
Maximum discharge head: 10'
Inlet: Screened
Outlet: 1/2" MNPT, 3/4" Insert adapter included
Tubing Size: 3/4" ID tubing
Motor: Wet-rotor (hysteresis) epoxy encapsulated
Electrical: 115 volts, 1 phase, 60 Hz, 1.1 Amps., 85 watts, 15 ft.power cord.
Dimensions: 4.0" high, 5.3" long, 4.3" wide.
Weight: 5.5 lbs.
Listings:
| Capacity Table# PES-800-PW In Gallons Per Hour |
| Model |
Head In Feet |
Shut-off |
| 1' |
5' |
10' |
| Gallons Per Hour (GPH) |
| PES-800-PW (566721) |
875 |
625 |
175 |
12' |
