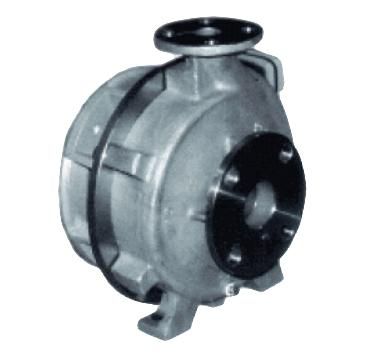

MP Pumps Chemflo 7, 316 Stainless Pump Pumpak 8.0" Impeller(Less Motor) # 33210
Item#:
MPP-PMP-33210
Availability:
Sale: $3,467.50
Shipping ChargesDescription
MP Pumps Chemflo 7 Pump Pumpak (Less Motor) # 33210 All Cast 316SS housing, Seal housing and Impeller which offers more corrosion resistance, increasing service life and application flexibility. This model also protects against extreme pH and temperature. Pipe size 2" x 1", with an enclosed impeller, standard type 2100 carbon/ceramic/viton seal and viton O-rings. Flows to 200 GPM and pressures to 280 ft of head. These pumps include only the PumpPak, they do not include the electric motor.Drop Ships from factory in 7-10 business days.
Specifications
Rated Capacity: 200 GPM Maximum Head: 280 feet Suction & Discharge Connections: 3" X 2" FNPT Impeller Diameter: 8.0" impeller diameter. Construction: All Cast 316SS housing, Seal housing and with an enclosed impeller, standard type 2100 carbon/ceramic/viton seal and viton O-rings. Motor Required: 15 HP Motor Frame Required: 182-184TC Weight: 46 lbs
| Chemflo Pumpak |
HP Req'd |
Imp. | Capacity At Total Dynamic Head In Feet | Shut Off |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 110' | 120' | 130' | 140' | 150' | 160' | 170' | 180' | 190' | 200' | 210' | 220' | 230' | 240' | 250' | 260' | 270' | ||||
| Gallons Per Minute (GPM) | ||||||||||||||||||||
| Pumpak 7 | 15 | 8.0" | - | - | - | - | - | - | - | - | 200 | 187 | 179 | 167 | 155 | 145 | 128 | 110 | 90 | 280' |
