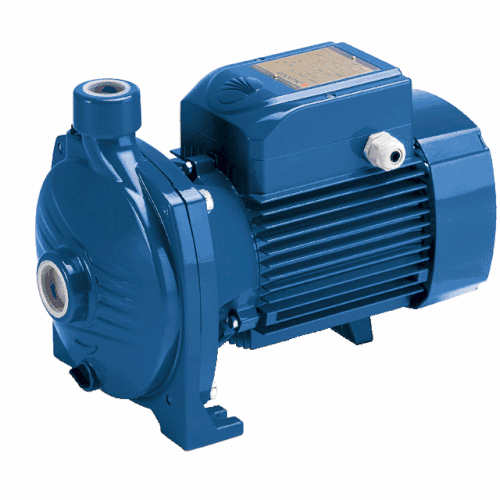

Pedrollo .85 HP 220/440V 3PH 60Hz Cast Iron Centrifugal Pump CP610
Special Order only - Contact us for price and availability 305-754-0677 or email information@kingpumps.com
This item is currently out of stock! .85 HP 220/440V 3PH 60Hz Cast Iron Centrifugal Pump CP610. Cast iron pump body, Technopolymer impeller, stainless steel motor shaft, ceramic- graphite mechanical seal, 1" x 1" Female NPT connections, .85 HP, 3450 RPM, 220/440 volts, 3 phase, 60 Hz, 2.6/1.5 amps, Dimensions: 13 x 10 x 11" Weight: 23 lbs
Construction: Pump Body: Cast iron, with threaded ports, Body Back-Plate Stainless steel AISI or cast iron on higher powered models; Mechanical Seal: Ceramic-graphite-NBR Connections: 1" X 1" female NPT suction and discharge Motor: .85 HP, 3450 RPM, TEFC, single phase, 220/440 volts, 60 Hz, ball bearings front and back, built-in overload protection. Clockwise rotation, when facing back of motor. Maximum working pressure: 140 PSI Maximum inlet pressure: 30 Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 13 x 10 x 11". Weight: 23 lbs
| Pump Capacity - At 0 Suction Lift | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | Capacity At Total Dynamic Head In Feet | Shut Off |
||||||||||||||
| 30' | 40' | 50' | 60' | 70' | 80' | 90' | 100 | 110 | 120' | 130' | 140' | ||||||
| Gallons Per Minute (GPM) | |||||||||||||||||
| CP610 | .85 | - | - | 17.8 | 15.5 | 12.5 | 9.3 | 5.0 | - | - | - | - | - | 99' | |||
