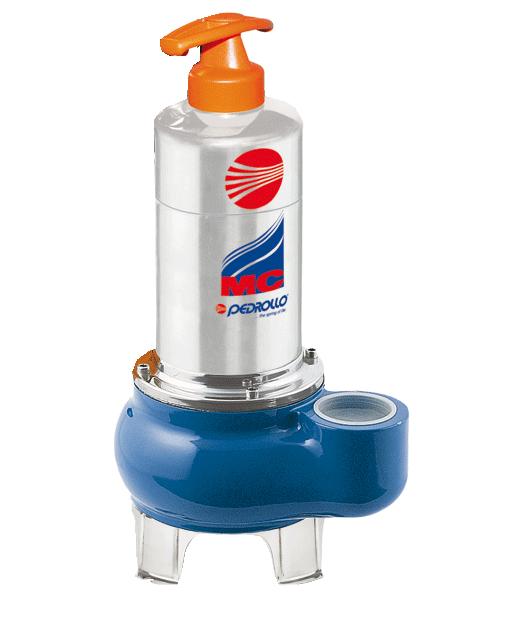

Pedrollo Manual 2-Vane Sewage Pump 200 GPM 1 HP # MC10-C16M(C)

Pedrollo Manual 2-Vane Sewage Pump 200 GPM 1 HP #  MC10-C16M(C)
Item# PDP-PMP-MC10-C16M
List: $1,101.00
Value Priced $812.63
Availability: ships in 2-3 business days


Description: Pedrollo Manual 2-vane 2" sewage pump 132 GPM 1 HP # MC10-C16M, 9 amps, 230 volts, 1 phase, 60 Hz with 30 ft. cord, continuous duty, oil-less, motor with capacitor and overload protection. 2-Vane impeller pumps up to 2" solids. Dimensions: 17" high, 9" wide. Weight: 37 lbs. Applications: Drying flooded areas, such as cellars, underground parking garages, car wash areas, domestic drains and for septic tank and sewage disposal. Construction: Cast iron body, 304 stainless steel motor casin, base, impeller and shaft. Double Seal: Silicon carbide mechanical seal , with oil barrier chamber (FDA approved oil) plus an inner lip seal to protect the seal in the event of dry running. Impeller type: 2-vane semi-open Bearings: Upper and lower ball bearings Outlet: 2" female pipe connector Submersion Depth: Up to 15 feet Minimum Inmersion: 11" from the base Minimum Basin Diameter: 19.7" Solids: 2" Liquid Temperature: Up to 104 degrees Fahrenheit Motor: Continuous duty, oil-less, class F insulation with capacitor and overload. Electrical: 230 volts, 1 phase, 60 Hz, 1 HP, 9.00 amps, with 30 ft. cord less plug. Dimensions: 17" high, 9.0" wide. Weight: 37 lbs. Note: In a 2-vane semi-open impeller design, the liquid with solids, passes through the impeller. The solid handling capacity of the impeller is determined by the space or distance between the vanes. They develop higher capacities than the same-size vortex impeller pumps.

* Sewage Pumps Technical Data

* Sewage Pumps Accessories

Capacity Table # MC10-C16M In Gallons Per Minute
Model HP PH Volts Amps Cord Size Total Dynamic Head (TDH) Shut-off
5' 10' 15' 20' 25' 30' 35' 40' 45'
Gallons Per Minute (GPM)
MC10-C16M 1 1 230 9 15' 2" 200 180 160 132 110 90 65 39 15 49'
