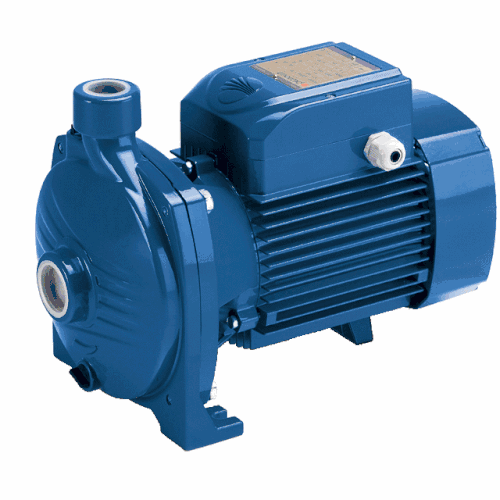

Pedrollo 1 HP 220/440/3/60 Cast Iron Centrifugal Pump CP620
Special Order only - Contact us for price and availability 305-754-0677 or email information@kingpumps.com
Pedrollo 1 HP 220/440/3/60 Cast Iron Centrifugal Pump CP620. Cast iron pump body, brass impeller, stainless steel motor shaft, ceramic- graphite mechanical seal, 1" x 1" Female NPT connections, 1 HP, 3450 RPM, 2230/440 volts, 3 phase, 60 Hz, 4.2/2.4 amps
Construction: Pump Body: Cast iron, with threaded ports, Body Back-Plate Stainless steel AISI or cast iron on higher powered models; Mechanical Seal: Ceramic-graphite-NBR Connections: 1" X 1" female NPT suction and discharge Motor: 1 HP, 3450 RPM, TEFC, three phase, 220/440 volts, 60 Hz, ball bearings front and back, built-in overload protection. Clockwise rotation, when facing back of motor. Maximum working pressure: 140 PSI Maximum inlet pressure: 30 Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 13 x 10 x 11" Weight: 30 lbs
| Pump Capacity - Pedrollo CP620 At 0 Suction Lift | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | Capacity At Total Dynamic Head In Feet | Shut Off |
||||||||||||
| 20' | 30' | 40' | 50' | 60' | 70' | 80' | 90' | 100' | 110' | 120' | 130' | 140' | |||
| Gallons Per Minute (GPM) | |||||||||||||||
| CP620 | 1 | - | - | - | 24.0 | 21.0 | 18.0 | 15.0 | 13.0 | 9.0 | - | - | - | - | 115' |
