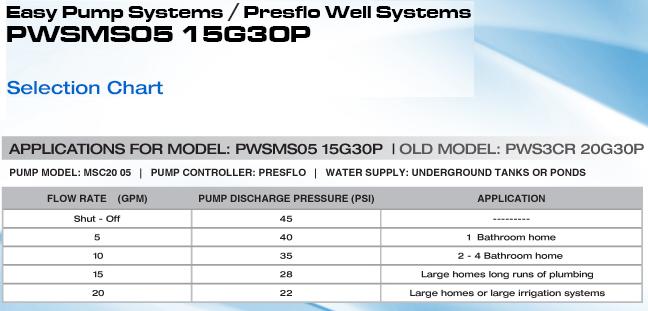

Pearl by Calpeda Presflo Well System 1/2 HP 230/1/60, 20 GPM at 25 PSI, PWSMS05-15G30PC. Ideal for average to large two story homes or long runs of plumbing. Six water outlets can be operated at the same time without substantially reducing performance. Used only to pump from wells NOT for inline boosting.
Operation: When a tap is opened, Presflo starts the pump and keeps it running, delivering constant flow. Presflo stops the pump when the demand is near zero. Presflo well system is made up of a water pump an electronic pump controller which pulls water out of shallow wells, underground tanks, ponds or lakes. It comes with a special built in valve that guarantees the pump continuous operation even witch capacity as low as 0.2 GPM. The systems are compact, quiet and easy to install.
Applications Domestic water supply, pressure boosting from wells or cisterns.Type of pump: Centrifugal for outdoor use
Pump construction: 304 Stainless steel and corrosion-resistant materials.
Maximum operating pressure: Do not exceed 75 PSI
Water Pump Protection: Outdoor Use
Presflo protection: Water Resistant
Tank size: Does not require an additional pressure tank under normal operating conditions. Suction lift: 15 feet maximum
Electrical: 230 volts, 1 phase, 4.0 Amps, 60 Hz, 1/2 HP, TEFC motor. Includes 8 ft. Power cord.
Minimum starting pressure: 20 PSI
Working temperature: 32-122 degrees Fahrenheit
Maximum working pressure: 140 PSI
Maximum flow rate: 0.2 GPM
Connections: 1" standard NPT
Dimensions: 13.25" high,14" long, 7.5" wide.
Weight: 28 lbs.
