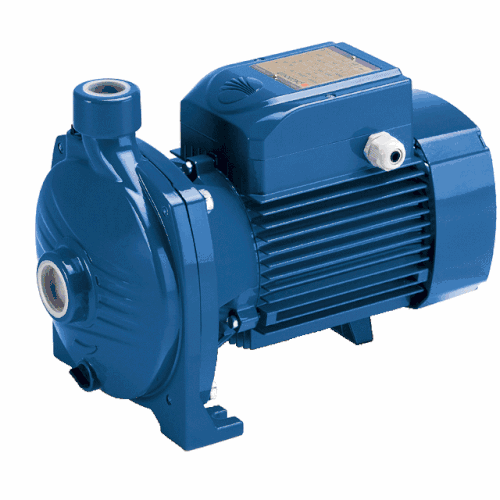

Pedrollo Pump 1/2 HP 220/440V. 3 Ph. 60Hz Cast Iron Centrifugal Pump CP600 (C)

Pedrollo Pump 1/2 HP 220/440V. 3 Ph. 60Hz Cast Iron Centrifugal Pump CP600 (C)v

Pedrollo Pump 1/2 HP 220/440V. 3 Ph. 60Hz Cast Iron Centrifugal Pump CP600. Cast iron pump body, brass impeller, stainless steel motor shaft, ceramic- graphite mechanical seal, 1" x 1" GAS/BSP THREADS connections, 1/2 HP, 3450 RPM, 220/440 volts, 3 phase, 60 Hz, 2.0/1.2 amps.

Construction: Pump Body: Cast iron, with threaded ports, Body Back-Plate Stainless steel AISI or cast iron on higher powered models; Mechanical Seal: Ceramic-graphite-NBR Connections: 1" X 1" female NPT suction and discharge Motor: 1/2 HP, 3450 RPM, TEFC, 3 phase, 220/440 volts, 60 Hz, ball bearings front and back, built-in overload protection. Clockwise rotation, when facing back of motor. Maximum working pressure: 140 PSI Maximum inlet pressure: 30 Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 13 x 10 x 11" Weight: 20 lbs
