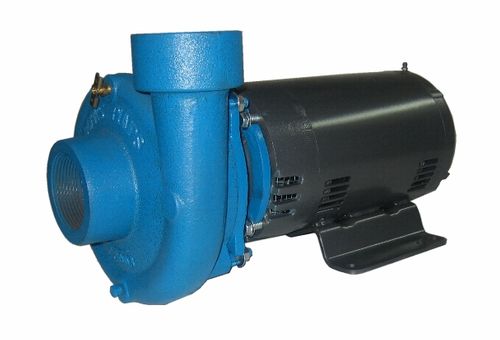

Burks End Suction Centrifugal Pump 160 GPM 7.5 HP # 375GA6-1-1/2

Burks Pump End Suction Centrifugal Pump 160 GPM 7.5 HP #375GA6-1-1/2 (C)
Item# BUR-PMP-GA6-1-1/2WE-375-6.25
$2,886.20
Availability: ships the next business day

Burks end suction, three phase, close-coupled, bronze fitted, centrifugal pump with mechanical seal. They are ideal for chemical service, booster service, recirculation, general water supply, and washer lines. Will Ship Via Truck Line To A Commercial Address. See Requirements Residential Deliveries Incur Additional Charges.

Specifications

Construction: Casing and bracket are close grain cast iron. Enclosed 6-1/4" bronze impeller, 302 stainless steel motor shaft, single mechanical seal with carbon faces, Buna elastomers and 304 stainless steel metal parts. Connections: 2" X 1-1/2" female NPT suction and discharge Motor: 7-1/2 HP, 3450 RPM, Open drip proof, three phase, 208/230/460 volts, 60 Hz, with ball bearings front and back, built-in overload protection, clockwise rotation facing back of motor. Maximum working pressure: 200 PSI Maximum inlet pressure: 70 PSI Maximum working temperature: 180 degrees Fahrenheit Carton dimension: 18" high, 16" wide, 29" long. Weight: 122 lbs



Pump Capacity - Burks 375GA6-1-1/2 At 0 Suction Lift
Model HP Capacity At Total Dynamic Head In Feet Shut
Off
110' 115' 120' 125' 130' 135' 140' 145' 150' 155' 160'
Gallons Per Minute (GPM)
375GA6-1-1/2 7-1/2 202 198 191 185 177 168 158 148 137 123 104 174'

BUR-PMP-GA6-150-Centrifugals-Specifications.pdf
BUR-PMP-GA6-150-Centrifugal-Composite-Curve.pdf
BUR-PMP-GA6-150-Centrifugals-Curves.pdf
BUR-PMP-GA6-150-Centrifugal-Dimensions.pdf
BUR-PMP-GA6-Centrifugal-Manual.pdf
