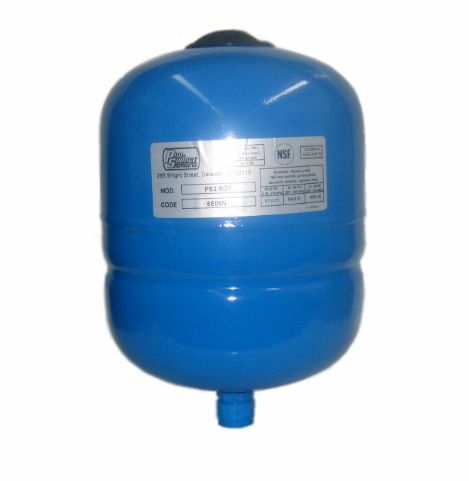

Myers 5 gallon pre-charged bladder metal pressure tank # PS5-S02. Equivalent in drawdown to a 18 gallon galvanized atmospheric tank.
Specifications:
Volume: 5 Gallons.
Inner liner: high density polyethylene.
Outer shell: Metal
Bladder: Heavy-gauge EVA material meets FDA clean-water requirements
Air connection: Standard tire valve.
Precharge: 30 PSI
Maximum operating pressure: 100 PSI
Maximum temperature: 120 degrees Fahrenheit
Connection: 3/4" MNPT (Male pipe thread)
Height: 16.2"
Diameter: 10.6"
Carton dimension: 18" H X 12" W X 12" L
Weight: 16.2 lbs.
ProSource Pressure Tank PS5-S02
Drawdown In Gallons At Various Pressure Ranges
Tank Drawdown In Gallons |
Pressure Range (PSI) |
2.2 |
20/40 |
1.8 |
30/50 |
1.8 |
40/60 |
