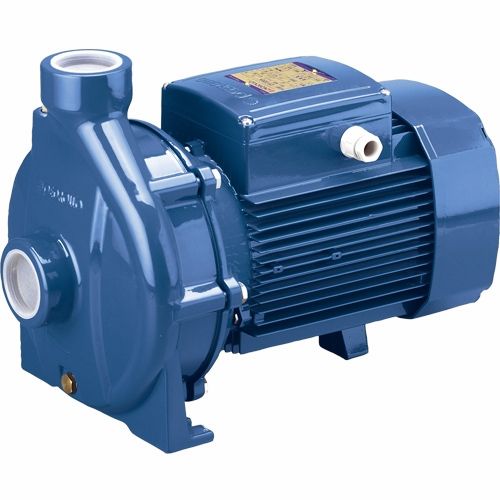

Pedrollo 5 HP 230/460/3/60 Cast Iron Centrifugal Pump CPH50-H36S
Special Order only - Contact us for price and availability 305-754-0677 or email information@kingpumps.com
Pedrollo 5 HP 230/460/3/60 Cast Iron Centrifugal Pump CPH50-H36S. Cast iron pump body, brass impeller, stainless steel motor shaft, ceramic- graphite mechanical seal, 2 " x 2 " Female NPT connections, 5 HP, 3450 RPM, 230/460 volts, 3 phase, 60 Hz, 20.1/12.2 amps. Will Ship Via Truck Line To A Commercial Address. See Requirements Residential Deliveries Incur Additional Charges.
Construction: Pump Body: Cast iron, with threaded ports, Body Back-Plate Stainless steel AISI or cast iron on higher powered models; Mechanical Seal: Ceramic-graphite-NBR Connections: 2" X 2" female NPT suction and discharge Impeller: Brass Motor: 5 HP, 3450 RPM, TEFC, 3 phase, 230/460 volts, 60 Hz, ball bearings front and back, built-in overload protection. Clockwise rotation, when facing back of motor. Range Of Performance: Flow rate up to 240 GPM, Head up to 246 ft Liquid temperature: up to 195 F Environment temperature: up to 104 F Weight: 94 lbs
| Pump Capacity - Pedrollo CPH50-H36S At 0 Suction Lift | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | HP | Capacity At Total Dynamic Head In Feet | Shut Off |
|||||||||||
| 169' | 168' | 167' | 165' | 161' | 156' | 148' | 141' | 131' | - | - | - | |||
| Gallons Per Minute (GPM) | ||||||||||||||
| CPH50-H36S | 5 | 13 | 26 | 39 | 52 | 66 | 79 | 92 | 105 | 119 | 132 | 145 | 158 | 171' |
