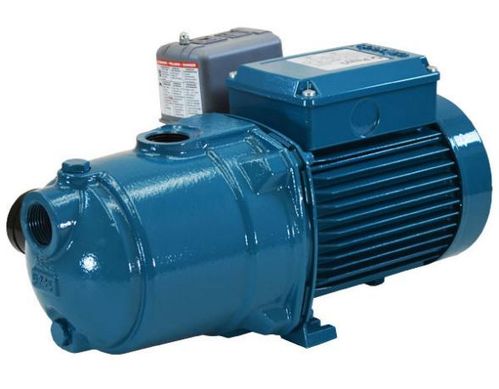

Pearl by Calpeda Cast Iron Bronze Fitted Shallow Well Jet Pump
21 GPM 3/4 HP 115/230 V. # JCC 07F16P (D)
Item#:
PEA-PMP-JCC07-F16P
Availability:Usually ships the next business day
Reg. $795.09
Sale: $470.79
Shipping ChargesDescription
Specifications
Description: Pearl by Calpeda cast iron bronze fitted shallow well jet pump 21 GPM 3/4 HP 115/230 V. # JCC 07F16S, Self priming for levels up to 22 feet. Includes jet pump with integral shallow well adapter, electric motor, pressure switch and gauge. Construction: Pump Casing: Cast iron, Casing Cover: 304 SS, Impeller: Brass, Wear Ring Impeller-Diffuser: 304 SS, Diffuser: Noryl, Ejector: Noryl, Shaft: Chrome Steel, Mechanical Seal: Carbon - Ceramic - NBR. Motor: 2-pole induction motor, 60 Hz (3450 rpm). Inlet & outlet: 1" X 1" (NPT) Electrical: 115/230 volts, 1 phase, 60 Hz, 3/4 HP, 10.5/5.4 amps. Maximum permissible pressure in the pump casing: 116 psi. Weight: 29.9 lbs. Replacement for Pedrollo JSW 07F16S Pump.
Applications
- For lifting water out of a well.
- For lifting water containing air or other gases.
- For increasing water pressure from flooded suction applications.
- A pressure boosting pump for water systems with low pressure (follow local specifications if increasing network pressure).
- For garden use.
- For washing with a jet of water.
| Model | HP | Discharge Pressure (PSI) |
Suction Lift In Feet | ||||
|---|---|---|---|---|---|---|---|
| 5' | 10' | 15' | 20' | 25' | Gallons Per Minute (GPM) | ||
| JCC 07F16S 115/230 Volts | 1/2 | 20 | 21.3 | 20.4 | 18.7 | 17.5 | 15.8 |
| 30 | 14.7 | 13.9 | 12.3 | 11.3 | 9.7 | 40 | 8.7 | 8.0 | 6.6 | 5.6 | 4.2 | 50 | 3.3 | 2.7 | 1.4 | 0.6 | - |
| Shut-Off | 58 PSI | 56 PSI | 54 PSI | 51 PSI | 49 PSI | ||
