Pearl by Calpeda Presflo Well System # DWBSMS07-25G30PC

Pearl by Calpeda Presflo Well System  230V, 3/4 HP # DWSMS07-25G30P3-C (C) <br>

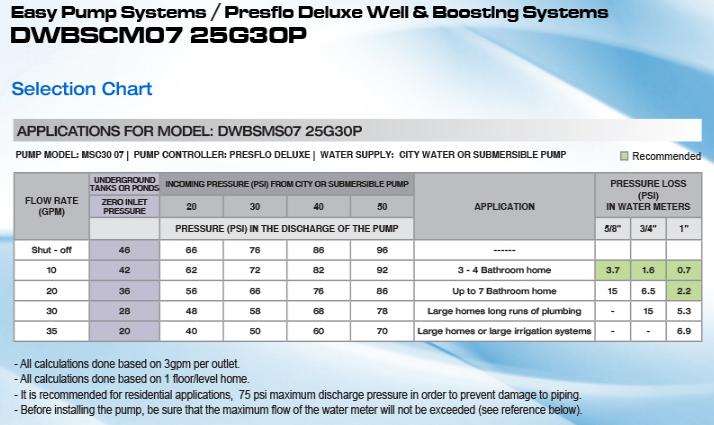

No longer available. Pearl by Calpeda Presflo Deluxe Inline Booster or Well System 3/4 HP 230/1/60, 1-1/4" X 1" Suction & Discharge, 40 GPM at 30 PSI, DWBSMS07-25G30PC. Ideal for average to large two story homes or long runs of plumbing. Six water outlets can be operated at the same time without substantially reducing performance.


Operation: The Presflo Deluxe control starts the pump as soon as you switch on the tap and continues running until water is not required. The controller continuously monitors the flow of water and will switch it off to avoid damage if the supply becomes inadequate. The systems are compact, quiet and easy to install. Applications Domestic water supply, pressure boosting from city and pressure boosting from wells or cisterns. Type of pump: Centrifugal single stage Pump construction: 304 Stainless steel and corrosion-resistant materials. Maximum operating pressure: Do not exceed 75 PSI Water Pump Protection: Outdoor Use Presflo Deluxe Protection: Water Resistant Tank size: Does not require an additional pressure tank under normal operating conditions. Suction lift: 15 feet Maximum inlet pressure: 50 PSI (Must install a pressure reducing valve on the suction side of the pump if the inlet pressure is more than 50 PSI) Electrical: 230 volts, 1 phase, 7.0 Amps, 60 Hz, 3/4 HP, TEFC motor. Includes 8 ft. Power cord. Maximum allowable city pressure: 50 PSI Working temperature: 32-122 degrees Fahrenheit Minimum starting pressure: Adjustable between 10 and 70 PSI Shut-Off flow rate: Between 0.25 and 0.50 GPM Connections: 1-1/4" X 1" Dimensions: 15" high, 15.39" long, 7.6" wide. Weight: 19.6 lbs.
