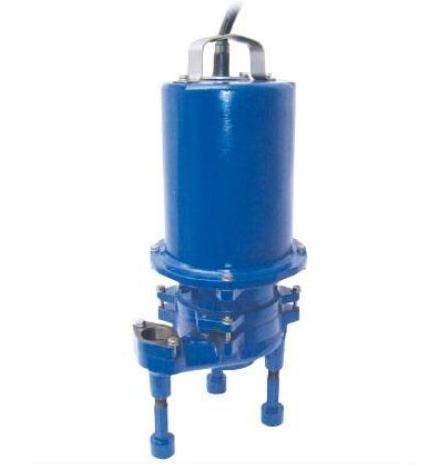

Power-Flo Submersible Grinder 1-1/4" NPT 2 HP 230V Pump # PFG2032HV

Item#: PFP-PMP-PFG2032HV
Product Available Availability:Usually ships the next business day
Power-Flo Submersible Grinder 1-1/4" NPT, 2 HP 230V Pump # PFG2032HV (D)<br>
Reg. $3,629.99
Sale: $2,705.10
Ask question Ask a Question- Read Answers
Shipping Charges Shipping Charges

Description

Power-Flo Submersible Grinder 2 HP 230V Pump # PFG2032HV, High-head & high volume, 3450 RPM, 230 Volts, 9.0 Amps, 3 phase, 58 GPM; 1-1/4" NPT Vertical, Bolt on Flange discharge; 20 feet custom molded 12/4 cord; Wt. 110 lbs.

Specifications

Construction: cast iron motor housing and seal plate; stainless steel shaft, cutter and shredding ring. oil filled, squirrel cage induction class B insulation motor, upper and intermediate bearing Single row, ball, oil lubricated; lower bearing sleeve, oil lubricated. Impeller: 12 vane, vortex Discharge: 1-1/4" NPT Vertical, Bolt on Flange Power Cord: 20 ft. Custom Molded, Fast Disconnect, for Sealing and Strain Relief. CSA approved, 12/4 Type SOW Paint: Powder Coated - Industrial Grade Seal: Tandem Double Mechanical, Carbon/Ceramic/Buna-N Electrical: 230 volts, 3 phase, 60 Hz, 2 HP, 3450 RPM, 9.0 amps Temperature: 160 F Intermittent


• Sewage Pumps Technical Data
• Sewage Pumps Accessories
Power-Flo Submersible Grinder
Series HP Total Dynamic Head (TDH) Shut-off
(feet)
20' 30' 40' 50' 60' 70' 80' 90' 100'
Gallons Per Minute (GPM)
PFG2032HV 2 58 57 56 53 48 41 33 23 11 109'
