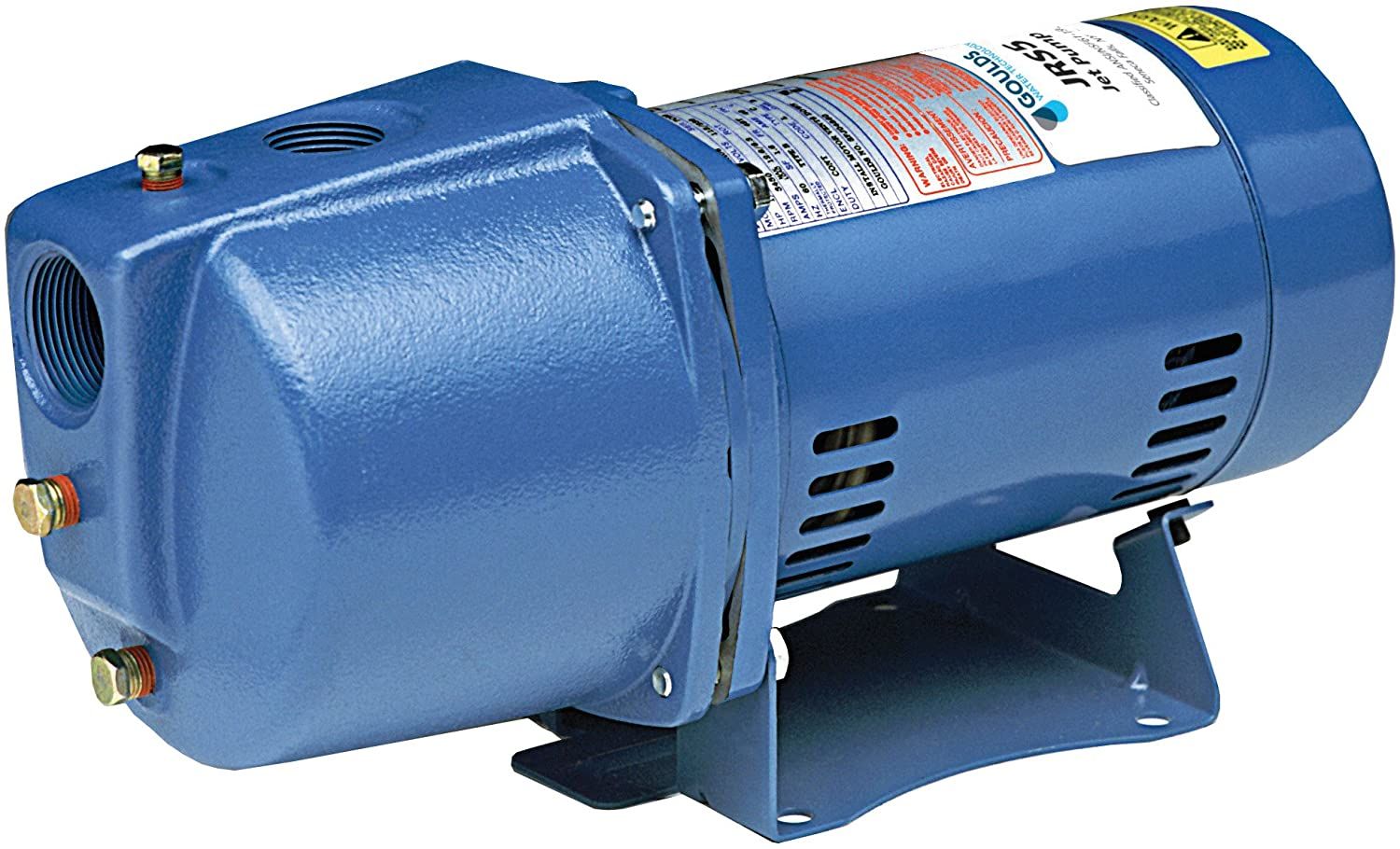

Goulds Water Technology Jet Shallow Well Pump
1/2 HP 1 Phase # JRS5
Add to cart to see price
Availability:Usually ships the next business day
Shipping ChargesDescription
Specifications
Description: Goulds Water Technology Jet Shallow Well Pump 1/2 HP 1 Phase # JRS5 Applications:Designed for use on shallow well applications like homes, cottages, and booster service. It has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter.Pump Body: Cast iron casing. Pump has Stainless Steel wear ring for longer life and resistance to wear Motor: 1/2 HP, Nema service factors Volts: 115/230 Phase: Single Hertz: 60, capacitor start RPM:3500 Shaft: Stainless Steel Shaft Seal: Standard Mech. Seal is Buna/Carbon/Ceramic Impeller Type: F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Ports: 1-1/4" NPT suction, 1" NPT discharge Rotation: clockwise when viewed from motor end Maximum Temperature: 140 degrees Fahrenheit Width: 9.15" Height: 8" Weight: 37 lbs. Certifications: CSA certified.
* Jet Pumps Technical Data
* Jet Pumps Accessories
| Model | HP | Discharge Pressure PSI |
Suction Lift In Feet | ||||
|---|---|---|---|---|---|---|---|
| 5' | 10' | 15' | 20' | 25' | |||
| JRS5 | 1/2 | 20 | 14.1 | 12.4 | 10.5 | 8.6 | 6.7 |
| 30 | 13.3 | 12.0 | 10.0 | 8.5 | 6.5 | ||
| 40 | 10.5 | 9.2 | 8.0 | 6.6 | 5.0 | ||
| 50 | 5.8 | 4.2 | 2.4 | 1.2 | 0.6 | ||
| Shut-off | 64 PSI | 59 PSI | 56 PSI | 53 PSI | 51 PSI | ||
